EdgeGO provides an intuitive web-based user interface that allows you to efficiently manage and monitor your edge devices. This guide will help you understand the key elements of the interface and how to navigate through different sections.

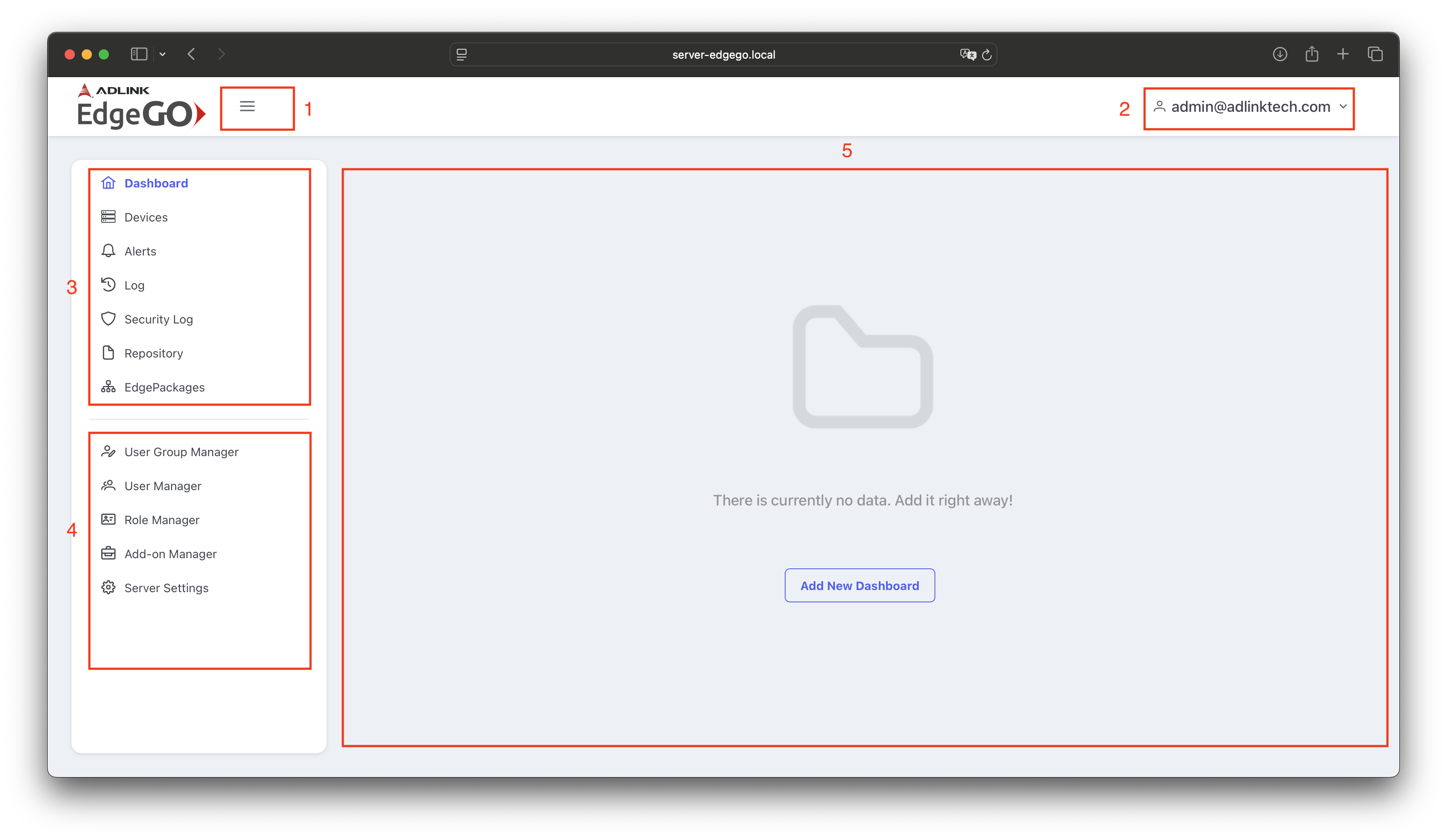

Main Navigation Components
Top Navigation Bar
The top navigation bar provides access to key features and information:
- (1) Menu Toggle Button: Located on the left side, allows you to expand/collapse the side navigation menu
- (2) User Profile [docs]: Located on the right side, shows the current logged-in user (admin@adlinktech.com) with a dropdown menu for user account settings and logout options
Side Navigation Menu
The side navigation menu is organized into two main sections:
(3) Main Operations
- Dashboard: Overview of your device data
- Devices [docs]: Manage and control connected edge devices
- Alerts: View and manage device alerts
- Log: View device logs, currently only offline will be logged
- Security Log: Review security-related events
- Repository [docs]: Manage your script, package and file repositories
- EdgePackages: Manage all the EdgeGO packages which deployed on your device
(4) Administrative Functions
- User Group Manager [docs]: Manage user groups and add user to group
- User Manager [docs]: Add and remove user accounts
- Role Manager [docs]: Configure user roles and device access rights
- Add-on Manager: Manage EdgeGO add-ons
- Server Settings: Configure system-wide settings
(5) Main Content Area The main content area displays the information and functionality related to the selected menu item from the side navigation. This is where you’ll interact with dashboards, device management, alerts…etc
